Description
Detailed Product Introduction

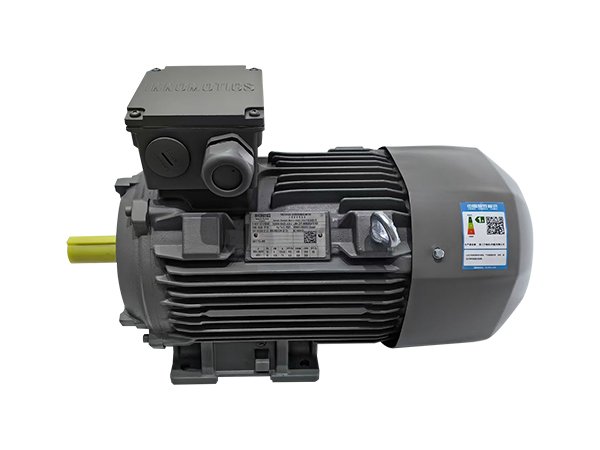

INNOMOTICS 1LE8005 series of 3-phase asynchronous motors is Totally Enclosed Fan Cooled (TEFC) with IP55 environmental protection,and applicable forgeneral purpose use.Thesemotors are designed and manufactured in accordance with ISO,lEC standards, GB standards.
The 1LE8005 series motoris designedfor constant oradjustable speed with continuous dutyoperation (S1) over a speedrange.
Features of INNOMOTICS 1LE8005 series
- Frame material: greycast iron or aluminum alloy
- Standard color: stone grey(RAL 7030).Rated power output: 0.55kW~315kW at 50Hz.
- Available in 2,4, 6, 8 pole motor(0.75kW and up) withefficiency grade 3. according to GB18613-2020 andefficiency class IE5 (50Hz)according to IEC 60034-30.moptimizedcompact style construction.
- Standard mounting construction according to IEC 60034-7: IMB3, IMB5, IMB35 and etc.
- All motors are designed to IP55 degree of protection (lEC60034-5).
- Re-greasing devices for Fs280~355 as standard,and for FS100~250 as option.
- Reinforced bearings forincreased cantilever forces for FS100~355 as option.
- Winding protections with PTC, PT100 and PT1000 as option.
